PVC Y形絕緣端子
Model : VY1.25
-採漏斗式套筒結構並且包覆絕緣PVC
-Y型設計提供快速、簡易的安裝方式，無需移除緊固件(如螺絲或栓等)。
-高品質硬焊接可避免壓接時Y型處和套筒分裂
材質 : 銅鍍錫及PVC絕緣材質
顏色 : 參考規格表

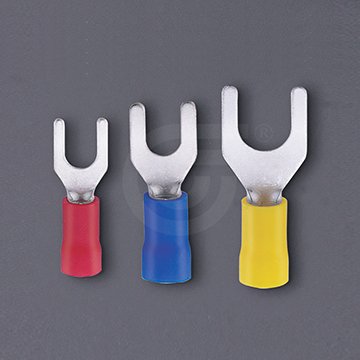

產品外觀圖
產品認證

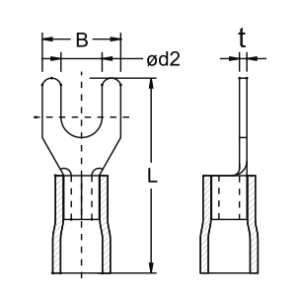

規格表
| Part.No | color | Dimension | Wire Range | ||||
| B mm | d2 mm | L mm | t mm | AWG | mm2 | ||
| VY1.25-3 | Red | 5.7 | 3.2 | 22.0 | 0.75 | 22-16 | 0.5-1.5 |
| VY1.25-3.5 | Red | 6.2 | 3.7 | 22.0 | 0.75 | 22-16 | 0.5-1.5 |
| VY1.25-3.5S | Red | 5.7 | 3.7 | 22.0 | 0.75 | 22-16 | 0.5-1.5 |
| VY1.25-4 | Red | 7.2 | 4.3 | 22.0 | 0.75 | 22-16 | 0.5-1.5 |
| VY1.25-4S | Red | 6.4 | 4.3 | 22.0 | 0.75 | 22-16 | 0.5-1.5 |
| VY1.25-5 | Red | 8 | 5.3 | 22.0 | 0.75 | 22-16 | 0.5-1.5 |
| VY1.25-6 | Red | 10.7 | 6.4 | 23.0 | 0.75 | 22-16 | 0.5-1.5 |
| VY1.25-6S | Red | 9.3 | 6.4 | 23.0 | 0.75 | 22-16 | 0.5-1.5 |
| VY1.25-S | Red | 13.5 | 8.4 | 28.0 | 0.75 | 22-16 | 0.5-1.5 |
| VY2-3 | Blue | 5.7 | 3.2 | 22.5 | 0.80 | 16-14 | 1.5-2.5 |
| VY2-3 .5 | Blue | 6.2 | 3.7 | 22.5 | 0.80 | 16-14 | 1.5-2.5 |
| VY2-3 .5S | Blue | 5.7 | 3.7 | 22.5 | 0.80 | 16-14 | 1.5-2.5 |
| VY2-4 | Blue | 7.2 | 4.3 | 22.5 | 0.80 | 16-14 | 1.5-2.5 |
| VY2-4S | Blue | 6.4 | 4.3 | 22.5 | 0.80 | 16-14 | 1.5-2.5 |
| VY2-5 | Blue | 8 | 5.3 | 22.5 | 0.80 | 16-14 | 1.5-2.5 |
| VY2-6 | Blue | 10.7 | 6.4 | 23.5 | 0.80 | 16-14 | 1.5-2.5 |
| VY2-6S | Blue | 9.3 | 6.4 | 23.5 | 0.80 | 16-14 | 1.5-2.5 |
| VY2-8 | Blue | 13.5 | 8.4 | 28.5 | 0.80 | 16-14 | 1.5-2.5 |
| VY5.5-3 | Yellow | 7 | 3.2 | 26.7 | 1.00 | 12-10 | 4-6 |
| VY5.5-3.5 | Yellow | 8 | 3.7 | 26.7 | 1.00 | 12-10 | 4-6 |
| VY5.5-3.5S | Yellow | 6 | 3.7 | 26.7 | 1.00 | 12-10 | 4-6 |
| VY5.5-4 | Yellow | 8 | 4.3 | 26.7 | 1.00 | 12-10 | 4-6 |
| VY5.5-4S | Yellow | 6 | 4.3 | 26.7 | 1.00 | 12-10 | 4-6 |
| VY5.5-5 | Yellow | 9 | 5.3 | 26.7 | 1.00 | 12-10 | 4-6 |
| VY5.5-6 | Yellow | 12 | 6.4 | 30.7 | 1.00 | 12-10 | 4-6 |
| VY5.5-6S | Yellow | 9 | 6.4 | 30.7 | 1.00 | 12-10 | 4-6 |
| VY5.5-8 | Yellow | 14 | 8.4 | 32.6 | 1.00 | 12-10 | 4-6 |
