產品
尼龍PCB板間隔柱
Model : CBS-5P
-支撐並穩定PC板
-用於電器產品內電路板的支撐、間隔、鎖固及引導
-手動安裝，無需任何組裝設備
Material : UL approved Polyamide 6.6, 94V-2
Color : Nature Color

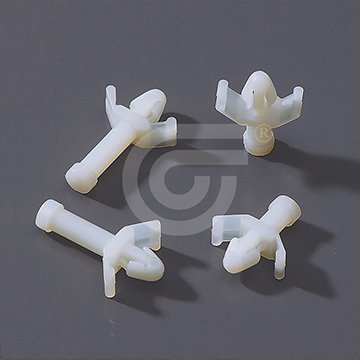

產品外觀圖
產品認證
規格表
| Part.No | spacing height | |
| mm | inch | |
| CBS-5P | 4.7±0.3 | 0.19±0.01 |
| CBS-6P | 6.3±0.3 | 0.25±0.01 |
| CBS-9P | 9.3±0.3 | 0.37±0.01 |
| CBS-13P | 12.6±0.3 | 0.50±0.01 |
| CBS-16P | 15.9±0.3 | 0.63±0.01 |
| CBS-19P | 19.0±0.3 | 0.75±0.01 |
| CBS-22P | 22.2±0.3 | 0.87±0.01 |
| CBS-25P | 25.2±0.3 | 0.99±0.01 |
| CBS-29P | 28.6±0.3 | 1.13±0.01 |
| CBS-35P | 33.4±0.3 | 1.32±0.01 |
