產品
插鞘式扭線環
Model : TH-A
-可重複捆束及快速拆解
-設計以扭轉鎖固捆束電線
-圓弧端可避免割傷電線電纜
Material : UL Approved Polyamide 6.6, UL94 V2
Color : Nature color

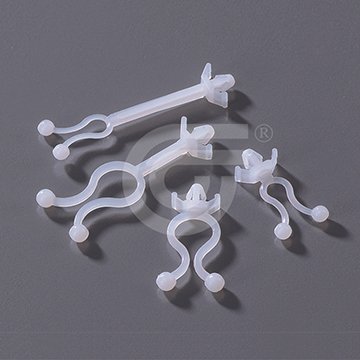

產品外觀圖
產品認證
規格表

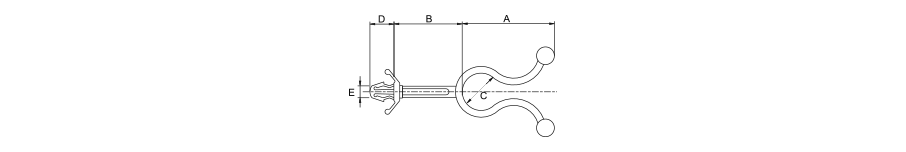

| Part.No | A mm | A inch | B mm | B inch | C mm | C inch | D mm | D inch | E mm | E inch |
| TH-A | 28.4 | 1.118 | 21 | 0.0827 | 12 | 0.472 | 7.5 | 0.295 | ø4.8 | 0.189 |
| TH-B | 19.4 | 0.764 | 33.5 | 1.319 | 6 | 0.236 | 7.5 | 0.295 | ø4.8 | 0.189 |
| TH-C | 26.3 | 1.035 | 4.7 | 0.185 | 11 | 0.433 | 7.5 | 0.295 | ø4.8 | 0.189 |
| TH-B1 | 19 | 0.748 | 6 | 0.236 | 6 | 0.236 | 7.5 | 0.295 | ø4.8 | 0.189 |
