鎖固式電線固定夾
Model : GCL
– 輕盈的塑膠材質特性更適用於飛機內部管線固定
– 能有效減少飛行重量，同時確保固定的安全性
Material : UL Approved Polyamide 6.6, UL94 V2
Color : Nature color

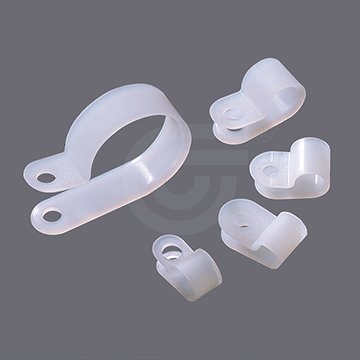

產品外觀圖
產品認證

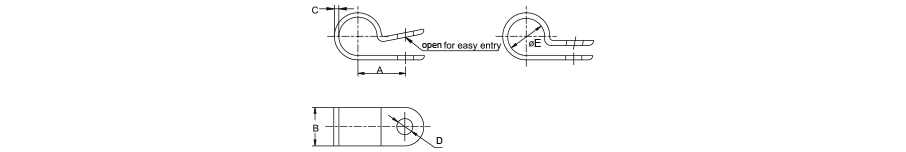

規格表
| Part.No | ø mm | ø inch | A mm | A inch | B mm | B inch | C mm | C inch | D screw dim mm(inch) |
| GCL-1/8S | 3.3 | 0.13 | 8.2 | 0.323 | 9.1 | 0.358 | 1.27 | 0.05 | ø5.45 for M5 |
| GCL-3/16S | 4.8 | 0.189 | 9.6 | 0.378 | 9.1 | 0.358 | 1.27 | 0.05 | ø5.45 for M5 |
| GCL-1/4S | 6.6 | 0.26 | 10.3 | 0.406 | 9.1 | 0.358 | 1.27 | 0.05 | ø5.45 for M5 |
| GCL-5/16S | 7.8 | 0.307 | 10.6 | 0.417 | 9.1 | 0.358 | 1.27 | 0.05 | ø5.45 for M5 |
| GCL-3/8S | 9.7 | 0.382 | 11.9 | 0.469 | 9.2 | 0.362 | 1.27 | 0.05 | ø5.45 for M5 |
| GCL-1/8 | 2.9 | 0.114 | 9.1 | 0.358 | 12.7 | 0.5 | 1.5 | 0.59 | ø5.4 for M5 |
| GCL-1/4 | 5.9 | 0.232 | 11.4 | 0.449 | 12.7 | 0.5 | 1.5 | 0.59 | ø5.3 for M5 |
| GCL-3/8 | 9.1 | 0.358 | 13.4 | 0.528 | 12.1 | 0.476 | 1.5 | 0.59 | ø5.3 for M5 |
| GCL-1/2 | 12.2 | 0.48 | 15 | 0.591 | 12.7 | 0.5 | 1.5 | 0.59 | ø5.3 for M5 |
| GCL-9/16 | 13.8 | 0.543 | 15.8 | 0.622 | 12.7 | 0.5 | 1.5 | 0.59 | ø5.3 for M5 |
| GCL-3/4 | 18.6 | 0.732 | 19.8 | 0.78 | 12.7 | 0.5 | 1.5 | 0.59 | ø5.3 for M5 |
| GCL-7/8 | 21.8 | 0.858 | 21.4 | 0.843 | 12.7 | 0.5 | 1.5 | 0.59 | ø5.3 for M5 |
| GCL-1-1/8 | 27.9 | 1.098 | 24.6 | 0.969 | 12.7 | 0.5 | 1.5 | 0.59 | ø5.3 for M5 |
| GCL-5/16L | 7.6 | 0.3 | 10.6 | 0.417 | 12.7 | 0.5 | 1.27 | 0.05 | ø4.4 for M4 |
