產品
閉端端子
Model : C
-尼龍絕緣外殼不易破裂，介電強度達300V
-小巧型的設計易裝入於狹窄位置
-喇叭狀外殼結構，電線容易穿入，減少電線折回造成短路的意外
材質 : UL approved 94V-2 Polyamide 6.6, 銅管或鋁管
顏色 : 自然色、白色

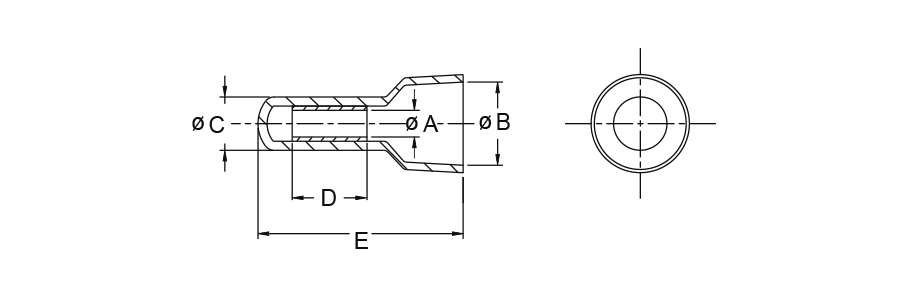

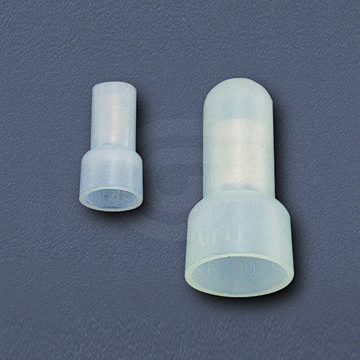

產品外觀圖
產品認證
規格表
| Part.No | color | Dimension | suitable crimping tool | Suitable Wire | temp Rating | Voltage | |||||
| A mm | B mm | C mm | D mm | E mm | AWG | mm2 | |||||
| C3 | Natural | 2.6 | 7.6 | 5.0 | 6.8 | 18.0 | GIT-517C1 | 22-16 | 0.5-1.5 | 105°C (221°F) | 300V |
| C4 | Natural | 3.2 | 7.6 | 5.8 | 6.8 | 20.4 | GIT-517C1 | 22-14 | 0.5-2.5 | 105°C (221°F) | 300V |
| C5 | Natural | 4.3 | 10.3 | 7.0 | 7.8 | 24.8 | GIT-517C1/GIT-517C5 | 22-10 | 0.5-6 | 105°C (221°F) | 300V |
| C8 | Natural | 5.0 | 12.2 | 9.2 | 8.8 | 27.0 | GIT-517C5 | 22-10 | 0.5-6 | 105°C (221°F) | 300V |
| C3-L | Natural | 2.6 | 7.6 | 5.0 | 6.8 | 18.0 | GIT-517C1 | 22-16 | 0.5-1.5 | 105°C (221°F) | 300V |
| C4-L | Natural | 3.2 | 7.6 | 5.8 | 6.8 | 20.4 | GIT-517C1 | 22-14 | 0.5-2.5 | 105°C (221°F) | 300V |
| C5-L | Natural | 4.3 | 10.3 | 7.0 | 7.8 | 24.8 | GIT-517C1/GIT-517C5 | 22-10 | 0.5-6 | 105°C (221°F) | 300V |
| C3V0 | White | 2.6 | 7.6 | 5.0 | 6.8 | 18.0 | GIT-517C1 | 22-16 | 0.5-1.5 | 105°C (221°F) | 300V |
| C4V0 | White | 3.2 | 7.6 | 5.8 | 6.8 | 20.4 | GIT-517C1 | 22-14 | 0.5-2.5 | 105°C (221°F) | 300V |
| C5V0 | White | 4.3 | 10.3 | 7.0 | 7.8 | 24.8 | GIT-517C1/GIT-517C5 | 22-10 | 0.5-6 | 105°C (221°F) | 300V |
| C3-LV0 | White | 2.6 | 7.6 | 5.0 | 6.8 | 18.0 | GIT-517C1 | 22-16 | 0.5-1.5 | 105°C (221°F) | 300V |
| C4-LV0 | White | 3.2 | 7.6 | 5.8 | 6.8 | 20.4 | GIT-517C1 | 22-14 | 0.5-2.5 | 105°C (221°F) | 300V |
| C5-LV0 | White | 4.3 | 10.3 | 7.0 | 7.8 | 24.8 | GIT-517C1/GIT-517C5 | 22-10 | 0.5-6 | 105°C (221°F) | 300V |
