鐵氟龍束帶
Model : GT-TF
1. 鐡氟龍束帶是特殊束帶可應用於嚴苛的作業環境，如化學腐蝕、核輻射、Gamma射線、紫外線曝露和極端溫度環境。
2. 應用場域有核能廠和化工廠等嚴峻環境。
3. 適用於極端溫度-60°C至170°C使用環境。
4. 成功案例橫跨亞洲多國，實績包括軍工、汽車、核電廠、軌道交通、半導體、醫療等高端產業應用。
材質: UL認證TEFZEL® (ETFE), 耐燃等級94V-0
顏色: 藍色、黑色

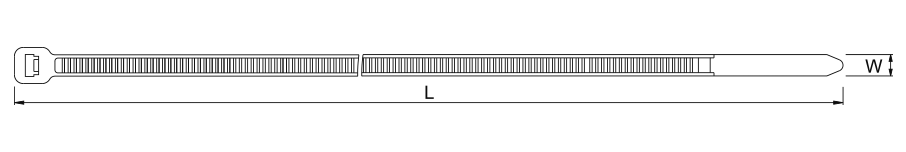

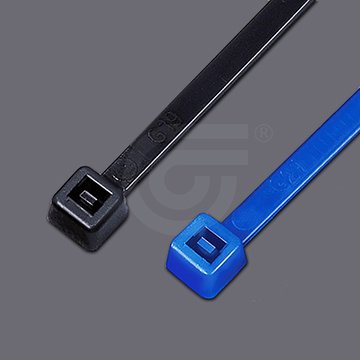

產品外觀圖
產品認證
規格表
| Part.No | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | operating temperature | |||||
| mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
| GT-100M-TF | 100 | 3.94 | 2.5 | 0.1 | 22 | 0.87 | 8.1 | 18 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-140I-TF | 143 | 5.63 | 3.6 | 0.14 | 33 | 1.3 | 18.2 | 40 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-150I-TF | 150 | 5.91 | 3.6 | 0.14 | 35 | 1.38 | 18.2 | 40 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-180I-TF | 180 | 7.09 | 3.6 | 0.14 | 44 | 1.73 | 18.2 | 40 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-200I-TF | 200 | 7.87 | 3.6 | 0.14 | 53 | 2.09 | 18.2 | 40 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-190ST-TF | 190 | 7.48 | 4.6 | 0.18 | 46 | 1.81 | 22.2 | 50 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-200ST-TF | 200 | 7.87 | 4.6 | 0.18 | 50 | 1.97 | 22.2 | 50 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-250ST-TF | 250 | 9.84 | 4.8 | 0.19 | 60 | 2.36 | 22.2 | 50 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-300ST-TF | 300 | 11.81 | 4.8 | 0.19 | 76 | 2.99 | 22.6 | 50 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-370ST-TF | 370 | 14.57 | 4.6 | 0.18 | 102 | 4.02 | 22.6 | 50 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-200HD-TF | 200 | 7.87 | 7.3 | 0.29 | 50 | 1.97 | 45 | 100 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-300HD-TF | 300 | 11.81 | 7.3 | 0.29 | 76 | 2.99 | 45 | 100 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-370HD-TF | 370 | 14.57 | 7.4 | 0.29 | 102 | 4.02 | 54.4 | 120 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-430HD-TF | 435 | 17.13 | 8.8 | 0.35 | 125 | 4.92 | 45 | 100 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
| GT-630HD-TF | 630 | 24.8 | 8.8 | 0.35 | 182 | 7.17 | 54.4 | 120 | 170˚ C (338˚ F) | .-60˚ C (-76˚ F) |
