尼龍耐寒束帶
Model : GT-WELB
– 多功能線纜束帶可用在無數應用中。
– 特殊尼龍原料可長期曝露於零度下的環境。
– 耐衝擊和抗UV 。
– 具有UL Recognized認證。
– 可通過軌道交通工具所需防火和毒物DIN5510-2測試標準。
材質: UL認證PA6,6, 耐燃等級94V-2
顏色: 黑色

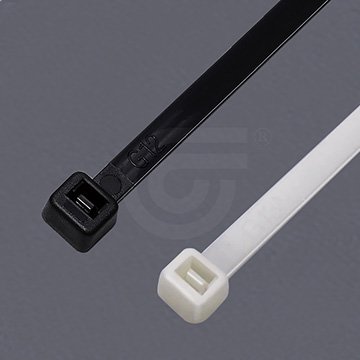

產品外觀圖
產品認證

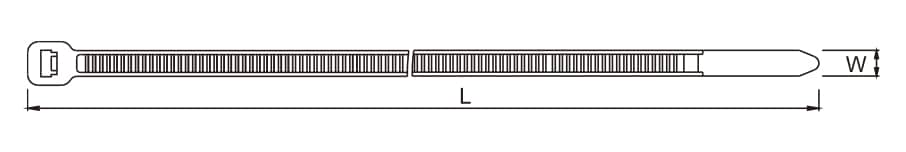

規格表
Part.No | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | operating temperature | |||||
mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
GT-80M-WELB | 80 | 3.15 | 2.4 | 0.09 | 15 | 0.59 | 8.1 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-100M-WELB | 100 | 3.94 | 2.5 | 0.1 | 22 | 0.87 | 8.1 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-150M-WELB | 150 | 5.91 | 2.5 | 0.1 | 35 | 1.38 | 8.1 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-150I-WELB | 150 | 5.91 | 3.6 | 0.14 | 35 | 1.38 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-200I-WELB | 200 | 7.87 | 3.6 | 0.14 | 53 | 2.09 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-250I-WELB | 250 | 9.84 | 3.6 | 0.14 | 65 | 2.56 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-300I-WELB | 300 | 11.81 | 3.6 | 0.14 | 76 | 2.99 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-200ST-WELB | 200 | 7.87 | 4.8 | 0.19 | 50 | 1.97 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-250ST-WELB | 250 | 9.84 | 4.8 | 0.19 | 60 | 2.36 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-300ST-WELB | 300 | 11.81 | 4.8 | 0.19 | 76 | 2.99 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-300HD-WELB | 300 | 11.81 | 7.6 | 0.3 | 76 | 2.99 | 54.4 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-370HD-WELB | 370 | 14.57 | 7.6 | 0.3 | 102 | 4.02 | 54.4 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-540HD-S-WELB | 533 | 20.98 | 7.6 | 0.3 | 140 | 5.51 | 54.4 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-750HD-S-WELB | 750 | 29.53 | 7.6 | 0.3 | 218 | 8.59 | 54.4 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-530HD-WELB | 530 | 20.87 | 9 | 0.35 | 140 | 5.51 | 79.4 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-630HD-WELB | 609 | 23.98 | 9 | 0.35 | 178 | 7.01 | 79.4 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
