自黏式PCB版固定支架
Model : ACBS-6M
-撕開背膠即可固定
-適用於 1.6mm(0.063inch)~ 2mm(0.079inch)之PC板厚度
-孔徑:Ø4+/-0.1mm(0.158inch)
Material : UL approved Polyamide 6.6, 94V-2
Color : Nature Color

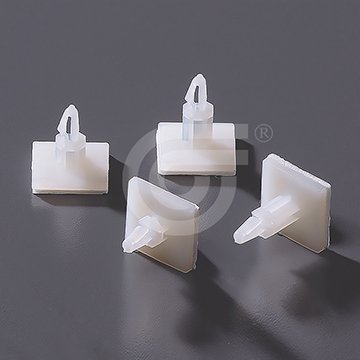

產品外觀圖
產品認證
規格表
| Part.No | spacing height (A) | Operating Temperature | ||
| mm | inch | °C | °F | |
| ACBS-6M | 5.6±0.3 | 0.22±0.01 | -40 ~ 85 | -40 ~ 185 |
| ACBS-9M | 8.7±0.3 | 0.34±0.01 | -40 ~ 85 | -40 ~ 185 |
| ACBS-12M | 11.9±0.3 | 0.47±0.01 | -40 ~ 85 | -40 ~ 185 |
