產品
單釘式扁型鋼釘線夾
Model : GFC
-具高彈性，可承受碰撞，不易破裂
-插入鋼釘，釘住塑膠座即可，可節省工時，降低成本
-弧形邊緣預防割壞電線外層
Material : PE、(Nail)Medium Carbon Steel
Color : Mostly grey and white, other colors are also available upon request

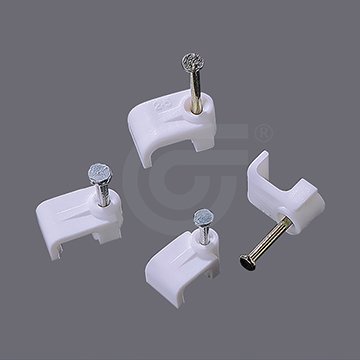

產品外觀圖
產品認證

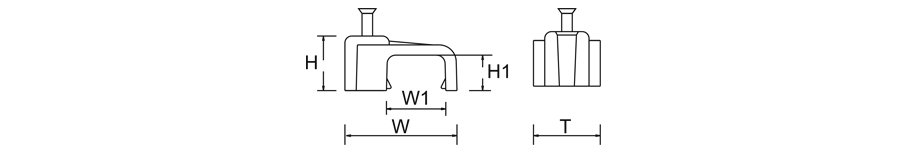

規格表
| Part.No | cable range | W(mm) | H(mm) | H1(mm) | Nails(mm) |
| GFC-PT | 5 | 3.6 | 1.8 | ø1.4×15 | |
| GFC-0.75 | 0.75mm2 | 6 | 6.2 | 4.1 | ø1.5X18 |
| GFC-1.0 | 8 | 7.5 | 4.3 | ø2X24 | |
| GFC-1.5 | 1.5mm2 | 9 | 7.8 | 5 | ø2X24 |
| GFC-2.0 | 11.3 | 8 | 5 | ø2X24 | |
| GFC-2.5 | 2.5mm2 | 10 | 8.3 | 5.3 | ø2X24 |
| GFC-4.0 | 4mm2 | 11.4 | 9.6 | 6.5 | ø2X24 |
| GFC-6.0 | 6mm2 | 13.5 | 10.5 | 7.2 | ø2X29 |
| GFC-10 | 10mm2 | 17.2 | 11.6 | 8.6 | ø2X29 |
| GFC-16 | 16mm2 | 20.1 | 13.4 | 10.2 | ø2.5X34 |
