n型電纜固定夾
Model : GC
-具高彈性，可承受碰撞，不易破裂
-插入鋼釘，釘住塑膠座即可，節省工時，降低成本
Material : PE、(Nail) Medium Carbon Steel
Color : Mostly grey and white, other colors are also available upon request
產品外觀圖
產品認證

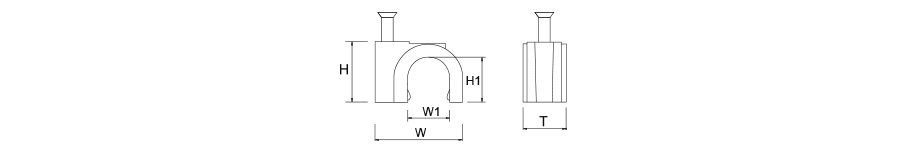

規格表
| Part.No | cable range | W(mm) | H(mm) | H1(mm) | Nails(mm) |
| GC-0.35 | 1 pair of wires | 3.5 | 5.9 | 3.7 | ø2.0×15 |
| GC-0.4 | 1 pair of wires | 4 | 6.6 | 4.2 | ø2.5×18 |
| GC-0.5 | 3C2V antenna; 5 pair of wires | 5 | 7.6 | 5.3 | ø2.5×18 |
| GC-1 | 5C2V antenna; 10 pair of wires | 6 | 9 | 6.6 | ø2.5×20 |
| GC-1.5 | 10 pair of wires | 7 | 11 | 7.2 | ø2.5×22 |
| GC-2 | 3C 1.25m/m2 wires | 8 | 11.5 | 8.6 | ø2.5×22 |
| GC-2.5 | 20 pair of wires | 9 | 12 | 9 | ø2.5×25 |
| GC-3 | 3C 3.5m/m2 wires; 3C 2m/m2 wires; 20 pair of wires | 10 | 13.4 | 10.5 | ø2.5×27 |
| GC-3.5 | 3C 3.5m/m2 wire; 2C 5.5m/m2 wire | 11 | 16.6 | 12.2 | ø2.5×27 |
| GC-4 | 2C/3C/4C 5.5m/m2 wire | 12 | 16 | 12.5 | ø2.5×27 |
| GC-6 | 3C 8m/m2 wire | 14 | 20.5 | 15.6 | ø3.0×35 |
| GC-7 | 3C 14m/m2 wire; 3 pipe; 3/8″ pvc pipe | 16 | 21.7 | 17 | ø3.2×38 |
| GC-7.2 | 3C 14m/m² wire; 3 pipe; 3/8″ PVC pipe | 18 | 22 | 17.5 | ø3.2×38 |
| GC-7.5 | 3C 14m/m2wire | 20 | 23.5 | 18.5 | ø3.2×38 |
| GC-8 | 3C 22m/m2 wire; 4 pipe; 1/2″ PVC pipe | 22 | 27.8 | 22.5 | ø3.2×42 |
| GC-9 | 3C 38m/m2 wire; 6 pipe; 3/4″ PVC pipe | 25 | 31.6 | 26 | ø3.2×47 |
| GC-10 | 1 inch pipe; 1″ PVC pipe | 32 | 40 | 33.5 | ø3.6×56 |
