PA尼龍浪管
Model : NFC
-PA6柔性軟管特性可減少安裝損壞並且有效保護線路
-易於安裝及移除
材質 : UL Approved Polyamide 6, UL94V-2
顏色 : 黑色

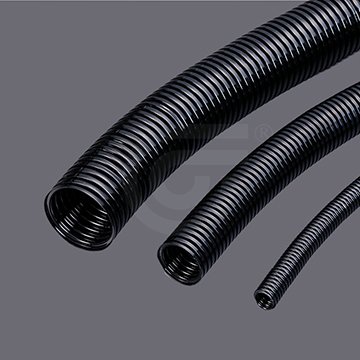

產品外觀圖
產品認證

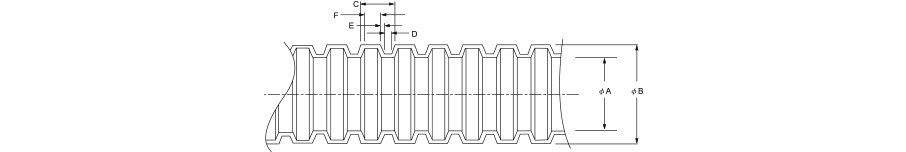

規格表
| Part No. | Nomial dimension mm | Nomial dimension inch | A (I.D) mm | B (I.D) mm | C mm | D inch | E mm | F mm |
| NFC-07 | 6.35 | 1/4” | 6.8±0.4 | 10.0±0.4 | 2.72 | 0.6 | 0.3 | 1.52 |
| NFC-10 | 7.97 | 5/16” | 9.6±0.4 | 13.0±0.4 | 2.93 | 0.6 | 0.3 | 1.73 |
| NFC-12 | 9.53 | 3/8” | 12.0±0.4 | 15.8±0.4 | 3.18 | 0.7 | 0.3 | 1.88 |
| NFC-17 | 12.7 | 1/2” | 16.2±0.4 | 21.2±0.4 | 3.46 | 0.6 | 0.4 | 2.05 |
| NFC-23 | 19.05 | 3/4” | 21.9±0.4 | 28.5±0.4 | 4.76 | 0.8 | 0.5 | 3.01 |
| NFC-28 | 25.4 | 1” | 27.6±0.4 | 34.5±0.4 | 4.76 | 0.9 | 0.6 | 2.71 |
| NFC-36 | 31.75 | 1-1/4” | 36.0±0.4 | 42.5±0.4 | 6.35 | 1.2 | 0.8 | 3.70 |
| NFC-48 | 50.8 | 2” | 47.0±0.4 | 54.5±0.4 | 6.35 | 1.1 | 0.8 | 3.75 |
